Kaihong is a leading China Aging Power Supply manufacturers, suppliers and exporter.
Features of dual-channel DC aging power supply
1. Advanced adjustment technology is adopted
2. It has the advantages of high stability, low ripple voltage and long continuous working time
1. Advanced adjustment technology is adopted
2. It has the advantages of high stability, low ripple voltage and long continuous working time
3. Suitable for aging life test of research institutes and factories
4. Can be customized according to customer needs.

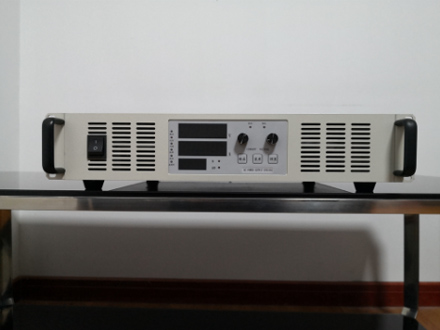

Model 6139B dual DC power supply is a linear series adjusted DC aging power supply. There are two groups of independent output channels, output 1: voltage 0 ~ 36V, current 0 ~ 3A; Output 2: voltage 0 ~ 36V, current 0 ~ 3A; Synchronous voltage 0 ~ 72V in series and synchronous current 0 ~ 6A in parallel; It has zero voltage and non - zero voltage adjustment function.
Performance index
1. Output voltage range: (1) Output 1:0 ~ 36V; (2) Output 2:0 ~ 36V;
2. Output current range: (1) Output 1:0 ~ 3A; (2) Output 2:0 ~ 3A;
3. Power effect: CV≤ 0.5% + 5mV;
4. Load effect: CV≤ 0.5% + 5mV;
5. Ripple voltage: ≤30mVp-p;
6. Digital voltage display error: ±1.5%±2 words;
7. Digital current display error: ±2%±2 words;
8. Voltage and current values are respectively displayed by two digital watch heads;
9. With zero voltage and non-zero voltage adjustment function;
10. With over voltage, over current protection function;
11. Instrument size: about 408mm (length) ×360mm (depth) ×168mm (height);
12. Input power supply: AC 220V± 10%, 50Hz±5Hz.
To prevent electric shock, please do not lift the cover of the instrument. All the parts inside this instrument absolutely do not need user maintenance. If the instrument has abnormal conditions, please contact my laboratory for maintenance.
Periodic maintenance
Ac power supply, input power line and related accessories should be carefully inspected and calibrated at least once a year to protect the safety of users and the accuracy of the instrument.
